PLT 300 Digital layout tool

Item #r4728599

Automated construction layout tool to speed-up jobsite stake-out using digital methods and BIM

Distance measurement accuracy: ±3 mm + 10 ppm
Operating distance range of remote control (diameter): 2 - 100 m
IP protection class: IP 55 (EN 60529)

More technical data

Customers also searched for Hilti total station

Features & Applications

Features

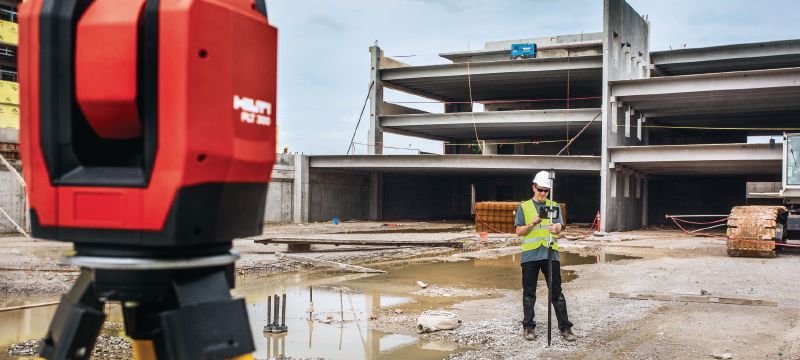

One-person construction layout and measuring – digital layout tools cut the labor needed for construction staking in half, while significantly increasing the number of points possible in one day
Get started faster – automatic stationing and tilt compensation for quick setup on the jobsite
Digitized construction layout using green laser and tablet – simply tap the stake-out point you need on the controller, and the layout tool will localize it in reality using the motorized green laser pointer
BIM-ready digital layout tool – bring the accuracy and efficiency of BIM-to-Field to your jobsites by switching to digital construction layout tools
On the Hilti CPC battery platform – power this digital layout tool using the same batteries as all your Hilti 22V power tools (not compatible with Nuron batteries)

Applications

Staking out 2D and 3D positions on the jobsite using digital CAD/BIM input
Laying out formwork, positions for excavation and MEP fastening points on floors and ceilings
Laying out single and dual slopes
Laying out and transferring building control lines
As-built measurement of existing features, including real-time area and volume calculations

Technical Data

Documents & Videos

Construction Layout tools designed for simple and quick use

Our new advanced layout solutions help you work faster on the jobsite

We understand that boosting productivity on the jobsite can be a challenge in the construction industry. This is why our new PLT 300 construction layout tool and PLC 400 tablet are engineered to bring you the connectivity, speed and accuracy you need.

Simplicity

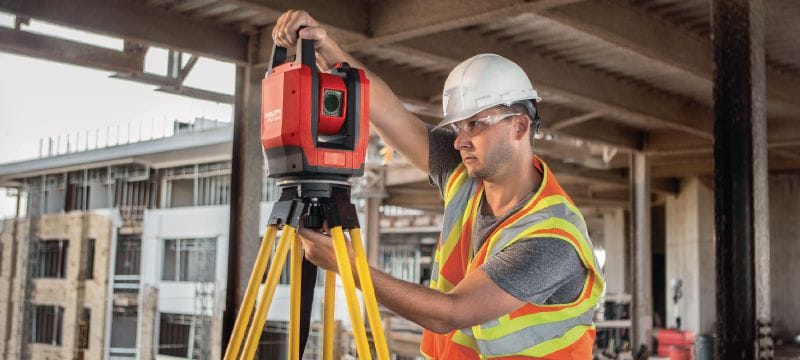

The PLT 300 has a self-levelling capability of ±5º meaning that no more manual leveling is required. Simply turn the tool on and it will automatically level itself! Its automatic stationing capabilities makes positioning the tool as simple as it gets. In addition, the PLT 300 comes with a green laser for increased visibility for layout in bright situations.

Save time

The PLT 300 has a unique tablet and software combination that allows a single operator to remotely perform more than 4 times the number of layout points per day (up to 500) than a team of 2 using traditional layout methods.

BIM-to-Field

The PLT 300 can help bring your BIM models to life, by integrating with the industry standard file formats such as DWG, DXF and CSV which are all supported by programmes such as Revit, Auto CAD, Navisworks, Tekla and many more. The simple user interface gives you everything you need on one screen from a 3D view to line creation and even the ability to create intersections, corners and more without data preparation.

You can then use the same PLT-300 to bring these real-life layout points or “As-built” information back into you BIM model, giving you a complete and transparent workflow.
