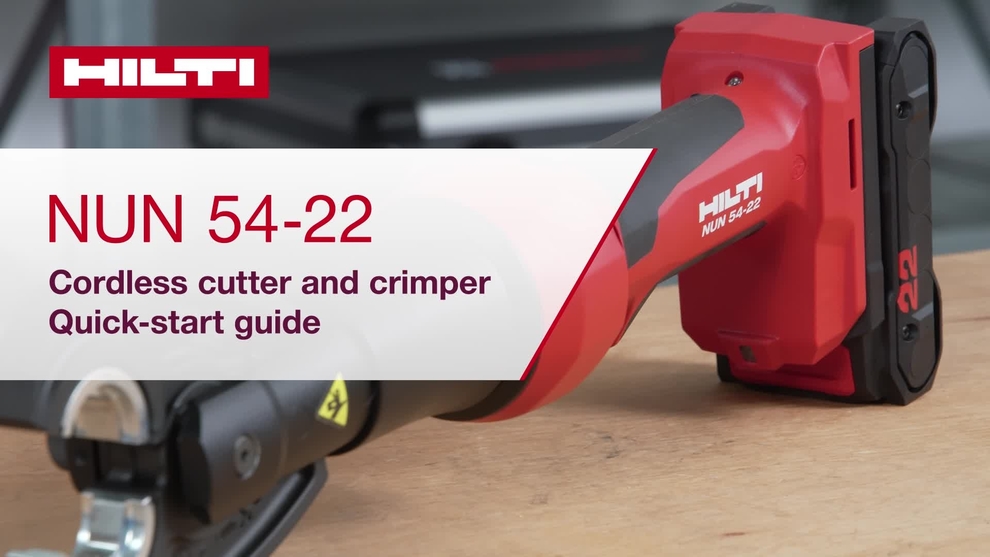

NUN 54-22 cordless 6-Ton cable crimper and cutter
New productItem #r13275538
Universal 6-Ton cordless cable crimper and cutter with interchangeable jaws (Nuron battery platform)
- Dimensions (LxWxH): 116 x 75 x 378 mm
- Head rotation: 350 °
- Approx. cycle time: 4 s
Share
Features & Applications
Features & Applications
Features
- Minimise downtime and liability risks – Hilti 6 ton crimpers/cutters can access our yearly certification and free tool inspection services
- One-for-all versatility – one hydraulic tool compatible with three interchangeable jaws for industry-standard 6-Ton tubular dies (including DIN and NF)
- Improved crimping quality – extensive tests following IEC, DIN, NF and UL standards
- Highest productivity – scissor-style jaws enable one-handed cutting and crimping, while the auto-retract function and long-lasting ACSR/Cu/Al blades help you to save time on every cable termination
- On the Nuron battery platform – cordless hydraulic tools without compromise thanks to longer-lasting batteries, higher quality jaws and a range of services to keep you productive, today and tomorrow
Applications
- Crimping NFC 20-130 copper compression cable lugs from 10-300 mm²
- Crimping capacity from 10-240 mm² for copper and aluminium conductors
- Cutting capacity of up to 33 mm (outer diameter) for copper and aluminium cables
- Cutting capacity of up to 9 mm (HS) and 7.5 mm (EHS) guy wire (outer diameter)
- Crimping overhead conductors with W-dies
